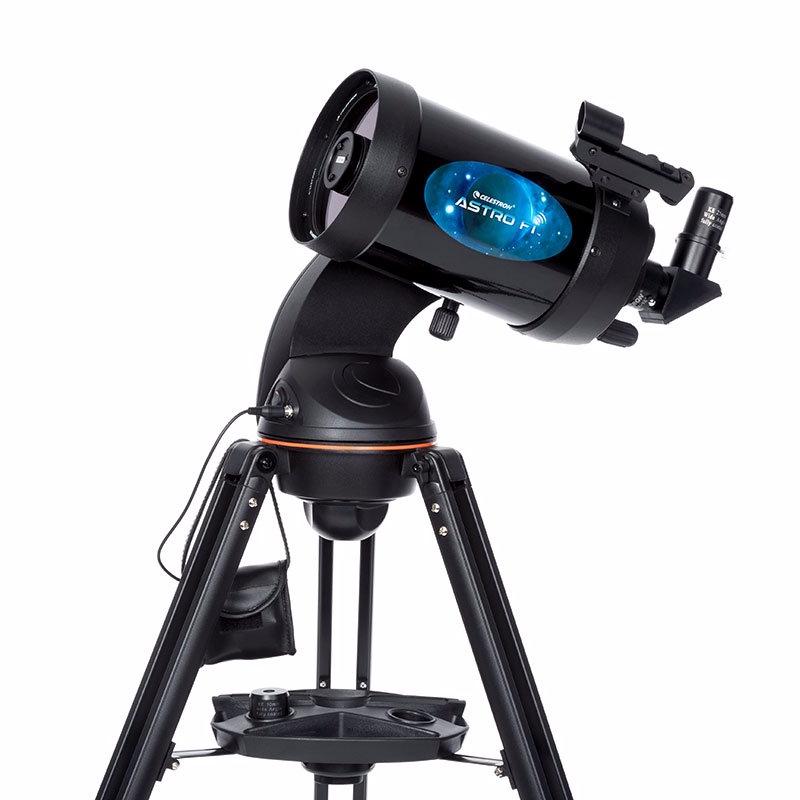

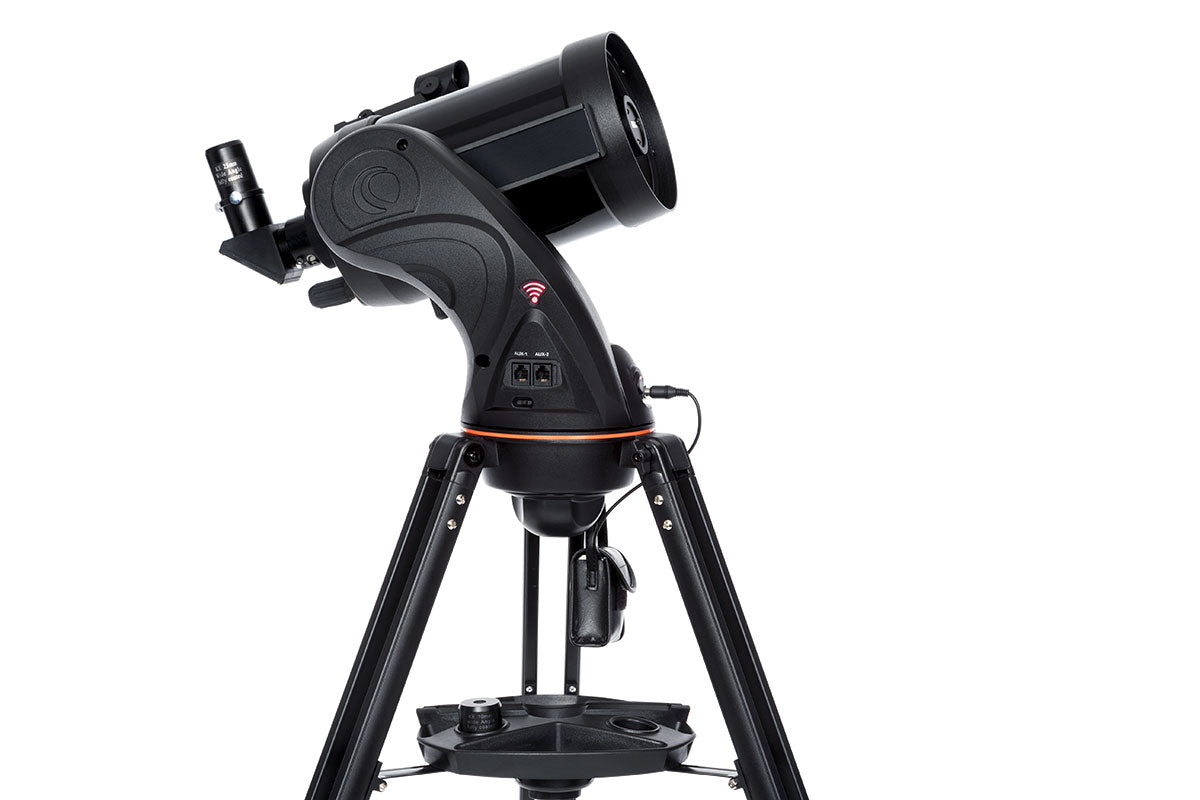

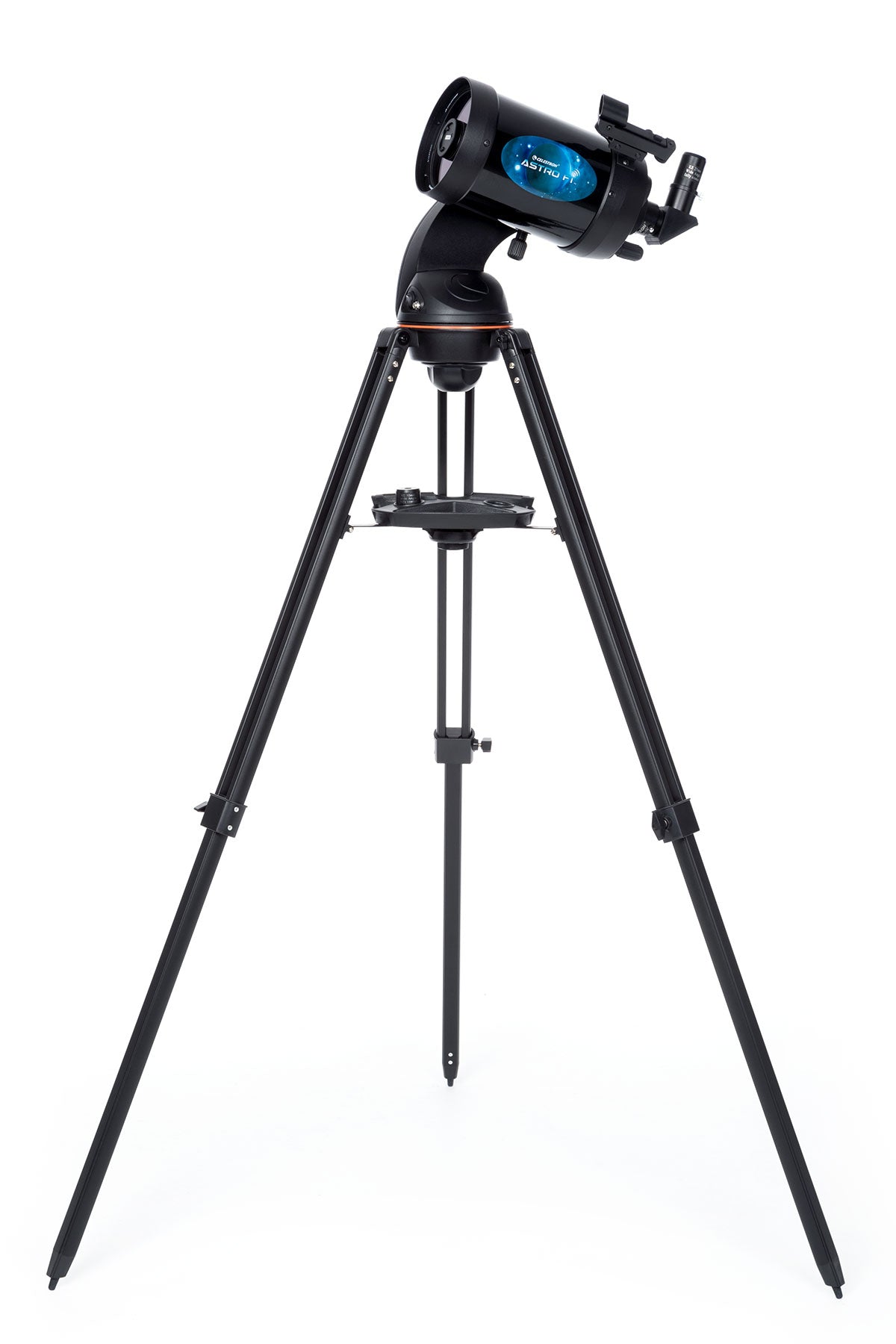

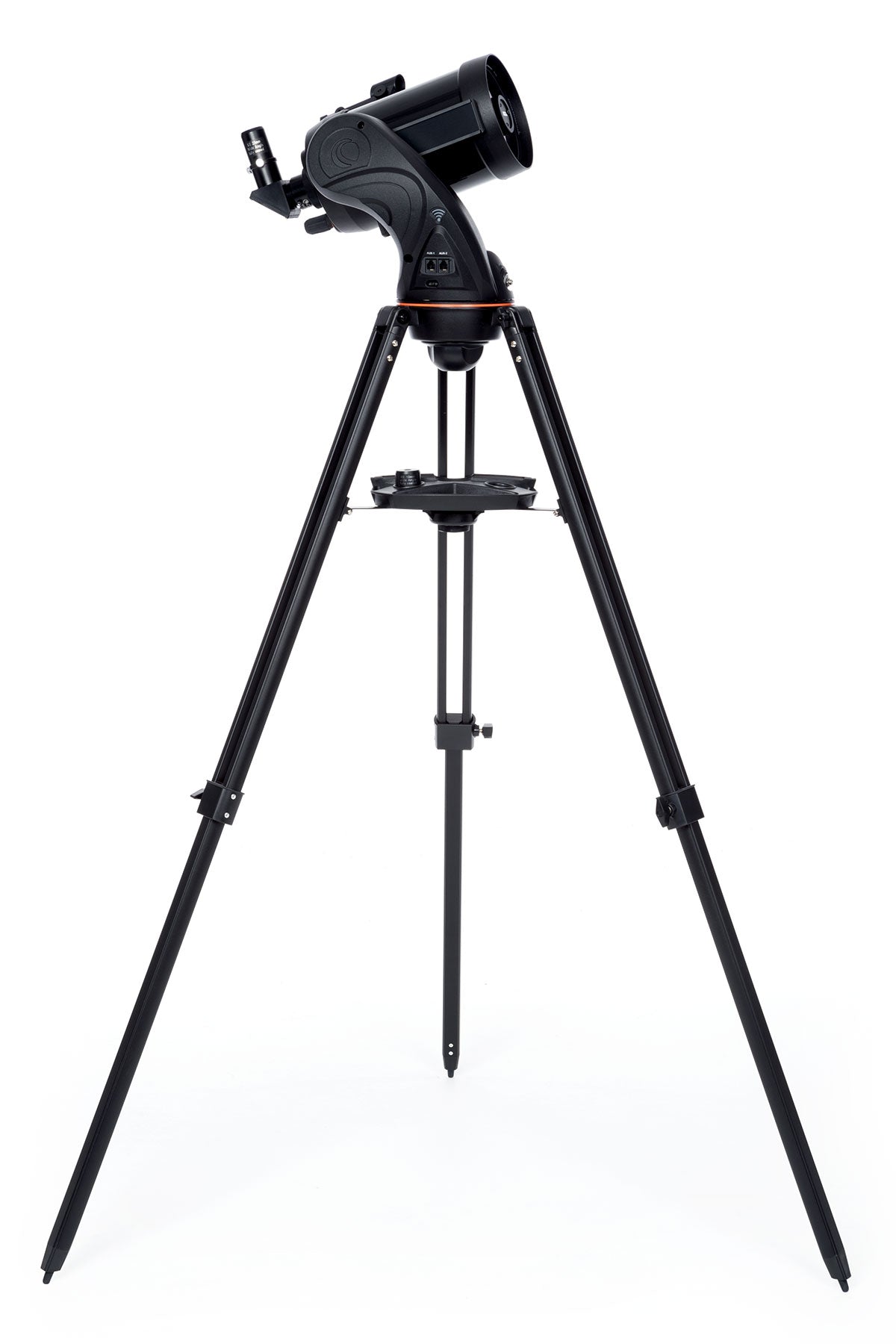

Astro Fi 5 Schmidt-Cassegrain Telescope

Astro Fi 5 Schmidt-Cassegrain Telescope

22204-CGL

In stock

2-Year Warranty

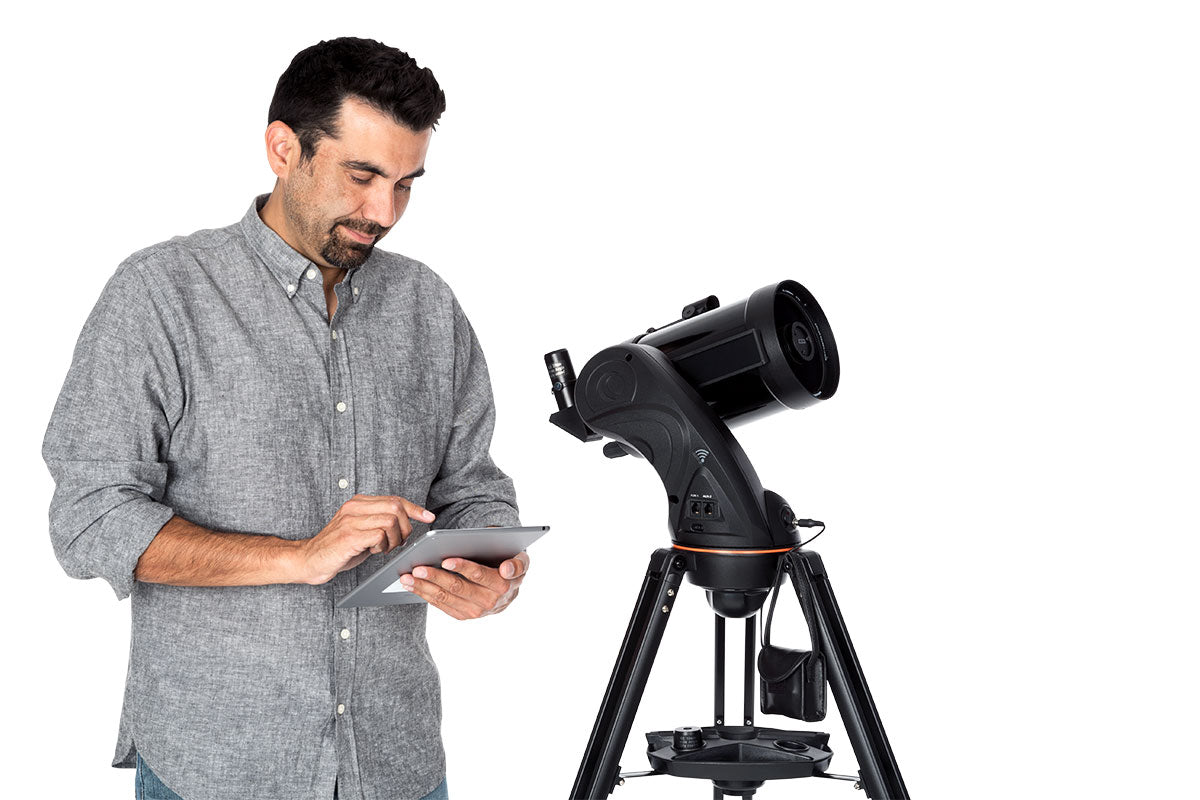

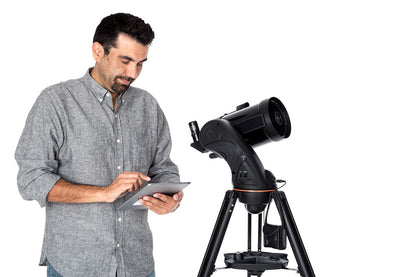

  • Control your telescope via integrated WiFi using the free Celestron SkyPortal Powered by SkySafari™ app for iPhone, iPad, and Android devices
  • The Astro Fi 125mm f/10 Schmidt-Cassegrain telescope with StarBright XLT coated optics provides outstanding views of the Moon and planets, as well as bright deep space objects beyond our Solar System.

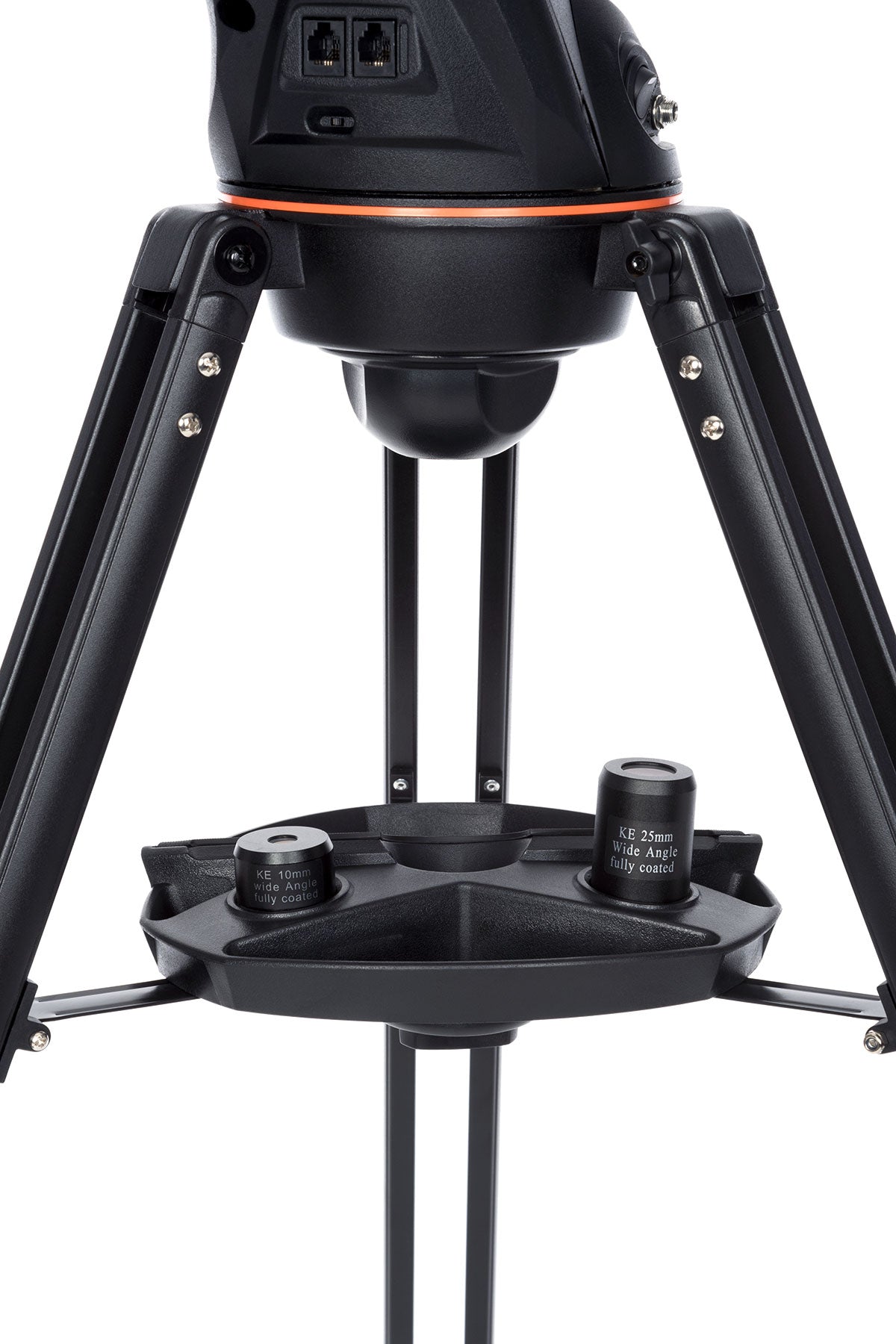

  • Accessory tray holds 2 x 1.25” eyepieces, miscellaneous accessories, including a rubber-lined area for a smart phone or small tablet.
  • Includes a StarPointer finderscope, 2 Kellner eyepieces, and mirror star diagonal.

Specifications

Optical Tube Info:
Optical Design: Schmidt-Cassegrain
Aperture: 125mm (4.92")
Focal Length: 1250mm (49.2")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 25mm (0.98")
Magnification of Eyepiece 1: 50x
Focal Length of Eyepiece 2: 10mm (0.39")
Magnification of Eyepiece 2: 125x
Finderscope: StarPointer™ red dot finderscope
Star Diagonal: 1.25"
Optical Tube: Aluminum
Highest Useful Magnification: 295x
Lowest Useful Magnification: 18x
Limiting Stellar Magnitude: 13
Resolution (Rayleigh): 1.11 arc seconds
Resolution (Dawes): 0.93 arc seconds
Light Gathering Power (Compared to human eye): 329x
Secondary Mirror Obstruction: 50mm (1.96")
Secondary Mirror Obstruction by Area: 16%
Secondary Mirror Obstruction by Diameter: 40%
Optical Coatings: Fully Coated
Optical Tube Length: 355.6mm (14")
Optical Tube Diameter: 180mm (17")
Optical Tube Weight: 6.8 lbs (3.08 kg)
Dovetail: CG-5 Dovetail bar
Mount Info:
Mount Type: Computerized Altitude-Azimuth Single Fork Arm
Instrument load capacity: 8 lbs (3.6 kg)
Height adjustment range (includes mount and tripod): 863.6mm - 1371.6mm (34" - 54")
Tripod leg diameter: 31.75mm (1.25") Aluminum
Mount Head Weight: 5 lbs (2.3 kg)
Accessory Tray: Yes. Includes rubberized smartphone or tablet holder
Tripod Weight: 5 lbs (2.3 kg)
Slew Speeds: max slew rate is 3°/second
Tracking Rates: Sidereal, Solar, and Lunar
Tracking Modes: Alt-Az, EQ North and EQ South
GPS: N/A
Dovetail Compatibility: CG-5 Dovetail

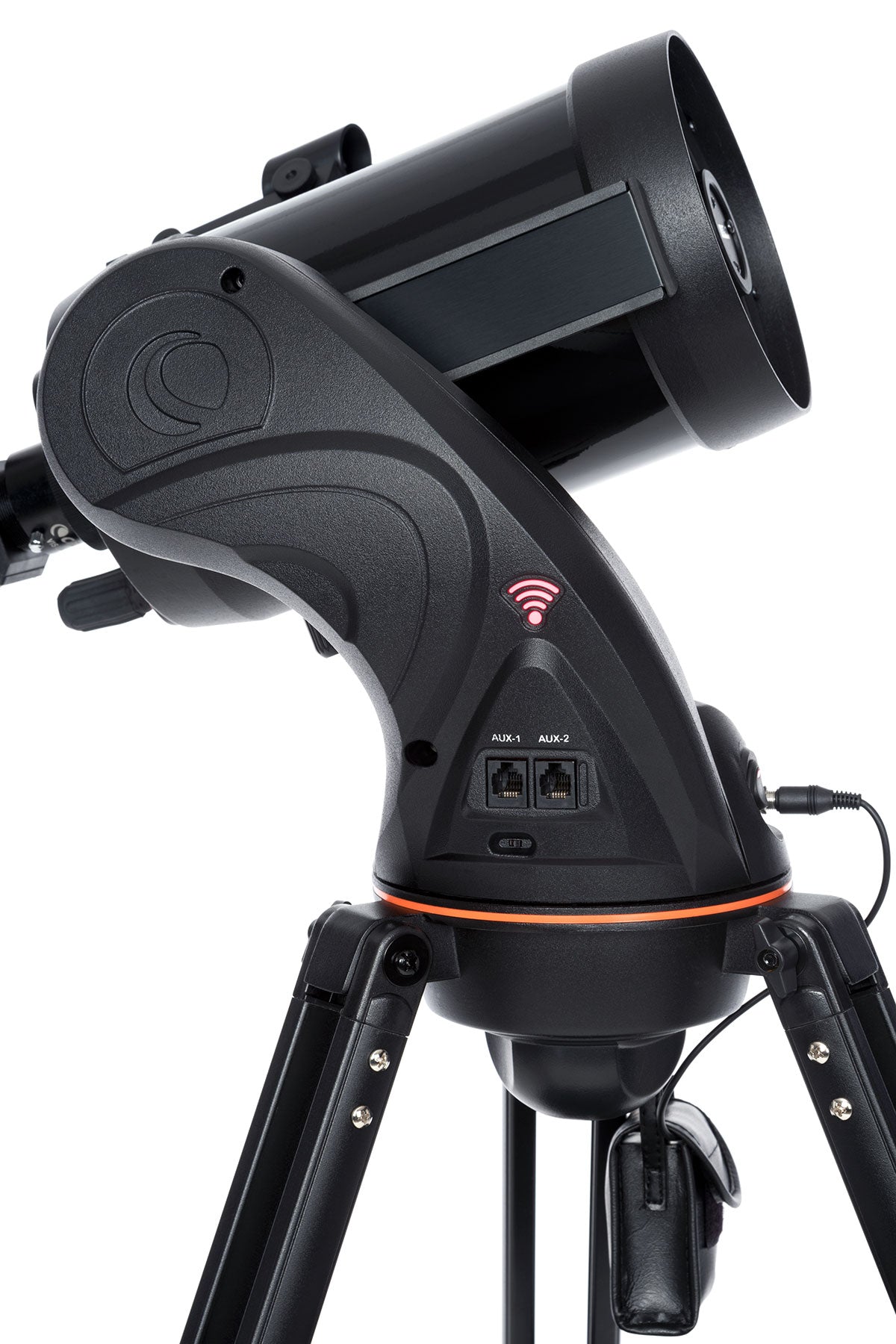

Number of Auxiliary ports: 2x AUX port for optional accessories
Autoguider port: No
USB Port: No (only with optional Nexstar+ remote)
Power Requirements: 12V DC, 1A (Tip positive)
Motor Drive: DC servo motor
Alignment Procedures: SkyAlign, 3-Star Align, Solar System Align
Periodic Error Correction: No
Computerized Hand Control: Hand control not included (optional)
NexStar+ Database: Optional Nexstar+ hand remote provides over 40,000 objects in the computer's database
Software: Celestron Starry Night Special Edition Software and SkyPortal App. Each provide over 100,00 objects in their database
Total Kit Weight: 16.8 lbs (7.6 kg)

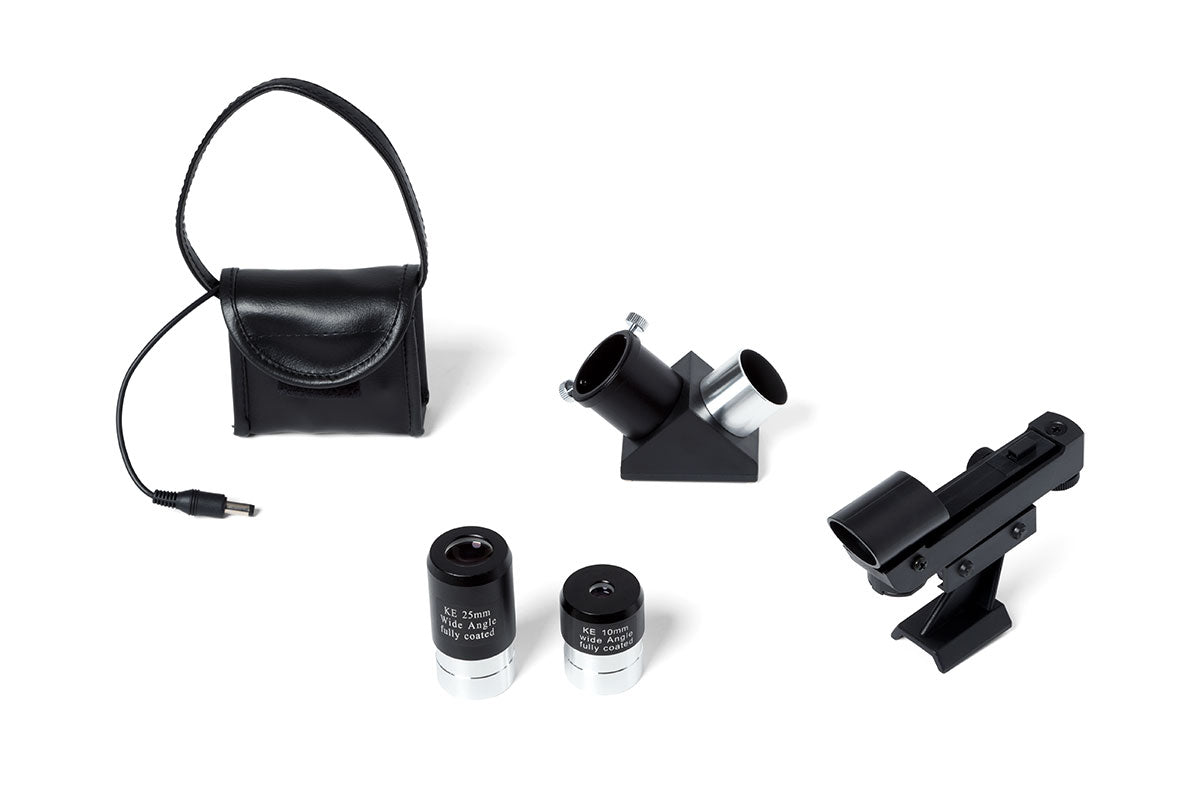

Included Items: Optical tube
Mount and tripod
Accessory tray
25mm and 10mm eyepieces
StarPointer™ red dot finderscope
Battery pouch
Additional Information
Solar Warning
  • Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
  • Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
  • Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
View full details

Customers Also Purchased

Celestron is changing the way we experience astronomy, but changing the way you interact with the night sky.  The Astro Fi 125 Schmidt-Cassegrain is a fully featured telescoped that can be controlled with your smart phone or tablet using the free Celestron SkyPortal Powered by SkySafari™ app.  Using the comprehensive and beautiful interactive star map of the sky, tap the object you Telescopeswant to view on your screen, and your telescope will point to it.
